Specs

Hull, superstructure and deck construction material
Plate cutting
Length overall
Length waterline
Length between perpediculars
Beam
Draught
Depth
Displacement
Deadweight

Main engines
Generators
Steering system
Speed (Max.)
Speed (Cruising)
Range
Batteries
Hydraulics
Electronics (supplied by)
Radios

Paints/Coatings
Windows
Lighting
Floor/Deck surface finishings
Safety equipment

Type of fuel
Fuel capacity
Fuel consumption
Crew

:
:
:
:
:
:
:
:
:
:

:
:
:
:
:
:
:
:
:
:

:
:
:
:
:

:
:
:
:

Aluminium
CNC
14.2 Mtrs.
9.78 Mtrs.
10 Mtrs.
4 Mtrs.
0.67 Mtrs.
1.2 Mtrs.
9,200 Kgs.
1,200 Kgs.

2 x Yamaha F100 (100 HP each)
Kohler 10 kVA
Manual Hydraulic
10 Knots
8 Knots
100nmi
3 x 100 Ah
3 x Conveyor belts + Gate
Garmin
VHF Garmin 100i

Jotun Paint System
Custom glazing by Obaid Glass
Navigation, anchor and search lights
Checker Plate Decking
SOLAS approved type life jackets and lifebuoys

Gasoline
2 x 300 Ltrs.
70 l/h
4

Classification : RTA
Port of Registry : Dubai
Operations envisaged : Cleaning of Port, marinas and touristic waterways

[ Read on... ]

The catamaran hull delivers stability from its wide plan form and can easily be powered with outboards, lowering capital and running costs. Additionally, each hull has seven sealed watertight compartments along its length to more effectively deal with any hull damage, increasing the vessel’s safety aspects. The all aluminum construction from ‘5083’ grade marine alloys make it highly durable for daily operation where there is little time for maintenance or upkeep.

The belt system is a three-part stainless steel conveyor, powered by a generator driven hydraulic powerpack. The forward conveyor part can be raised or lowered into the water depending on the items being collected. The rubbish is lifted from the water and dumped onto the second conveyor part, which shifts the rubbish aft in stages as it is collected. When full, the vessel can be reversed into a dedicated disposal site where the aft conveyor can be run to remove all the waste without any need for manual intervention.

With the vessel’s operations in mind, an air-cooled generator powers the hydraulics, removing the need for a seawater inlet, which would constantly need to be cleaned due to blockages and marine growth. Being a self-contained unit, it has an integrated fuel tank and is deck mounted, making servicing easy. If a replacement should ever be needed, once it is in place, connection of the electrical supply wires is all that would have to be done, all in all, a two-hour operation.

Finally, outboard power was chosen for its proven performance and reliability in the harsh middle east environment of scorching heat, high humidity and salinity and also for other equally important commercial factors such as ease of servicing and inexpensive replacement costs. Also, its role as a rubbish collection vessel means that any entanglement of ropes or bags around the propellers can be dealt with by simply trimming out the engines.

[ Close ]

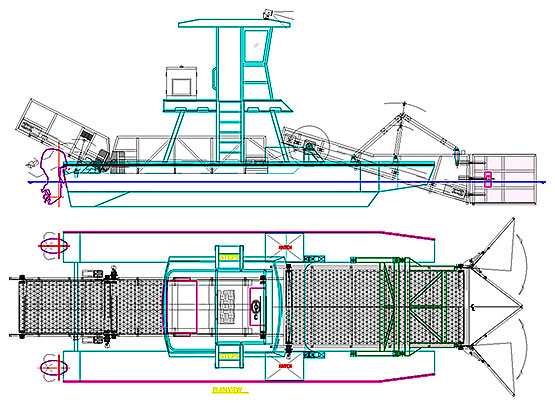

Hydraulic Belt Skimmer...

Commissioned by the Dubai Municipality to increase the capability of their existing fleet of four Al Manzel Marine ‘Whaleshark’ cleaning boats, this powered belt skimmer would greatly assist in their cleaning operations at Khor Dubai, an iconic and touristic waterway. A joint effort by Al Manzel Marine and the Dubai Municipality led to the specifications of this new cleaning vessel, which has been in operation now for several months.
